7 Segment Lcd Display VA for UPS screen

7 Segment Lcd Display VA for UPS screen

JD0801-21291A2 is a 7 Segment Lcd Display VA for UPS screen, with AIP31621E (OR Compatible) driver IC. 7 Segment Lcd Display VA for UPS screen can mainly be applied in UPS power. SpecificationModule Name7 Segment Lcd Display VA for UPS screenModule Size75.6(W )×72.0(H)×19.6(T)mmDisplay Vi......

Send Inquiry

Product Description

JD0801-21291A2 is a 7 Segment Lcd Display VA for UPS screen, with AIP31621E (OR Compatible) driver IC. 7 Segment Lcd Display VA for UPS screen can mainly be applied in UPS power.

Specification

Module Name7 Segment Lcd Display VA for UPS screen
Module Size75.6(W )×72.0(H)×19.6(T)mm
Display View Area59.9(W)×32.5(H) mm
Display ModeVA /POSITIVE/TRANSFLECTIVE
View Angle12 O’clock
Driver ICAIP31621E (OR Compatible)
Backlight typeLED/WHITE
WeightTBD

Product Feature and Application

● Integrated LCM with connector, resistance capacitor, backlight, etc.
● Anti-interference static strength.
● 7 Segment Lcd Display VA for UPS screen can mainly have applications in UPS power.

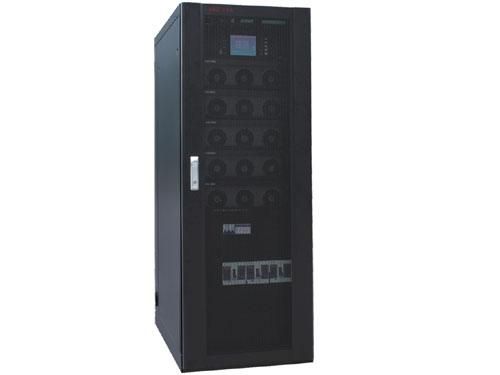

UPS Power
