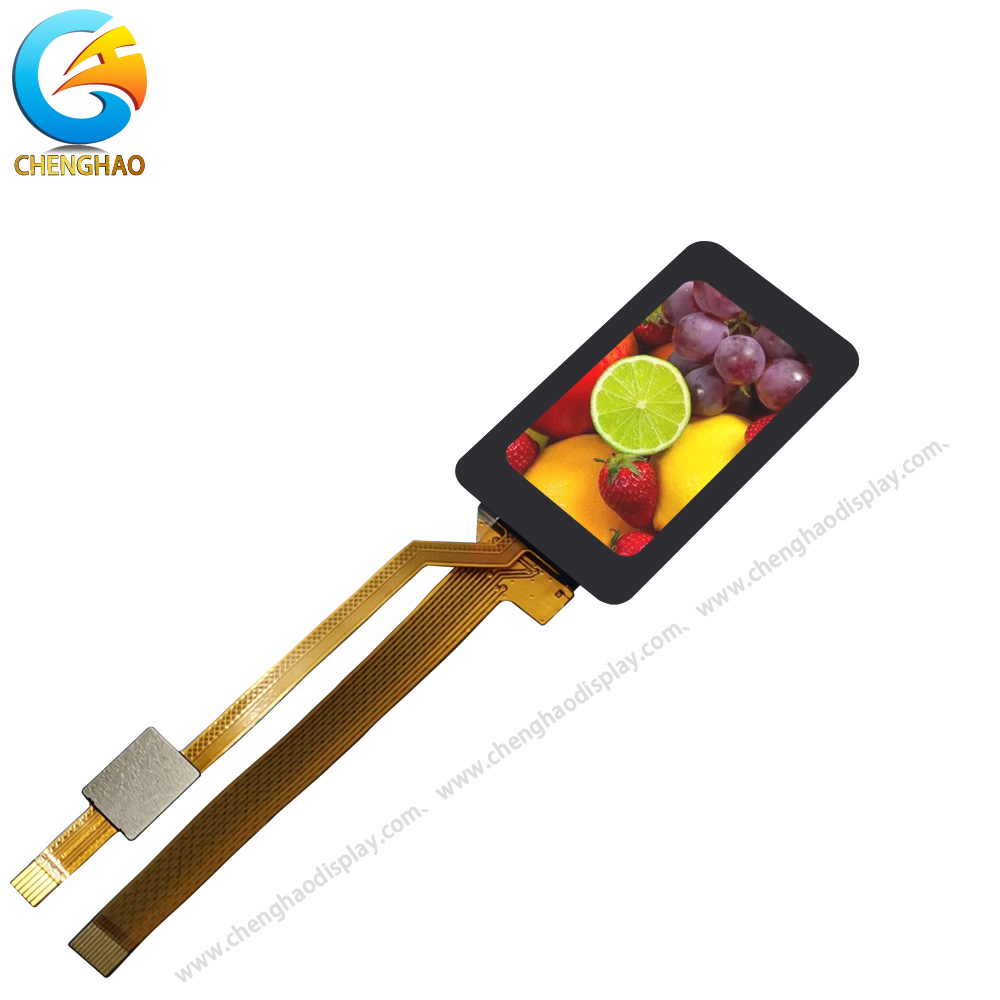

1.47 Inch IPS TFT Lcd Touch Screen Display

1.47 Inch IPS TFT Lcd Touch Screen Display

Chenghao Display CH147QV03A-CT is a 1.47 inch IPS TFT Lcd Touch Screen Display, using SPI interface, the backlight brightness is 400 cd/m2. This display uses IPS/Normally Black/Transmissive display mode, supports free viewing angle (80/80/ 80/80). Since the Capacitive touch panel is installed on the......

Send Inquiry

Product Description

Chenghao Display CH147QV03A-CT is a 1.47 inch IPS TFT Lcd Touch Screen Display, using SPI interface, the backlight brightness is 400 cd/m2. This display uses IPS/Normally Black/Transmissive display mode, supports free viewing angle (80/80/ 80/80). Since the Capacitive touch panel is installed on the surface of the tft lcd and communicates through the I2C interface, theips touch screensupports screen touch and can realize human-computer interaction. In addition, theips tft display modulesupports operation in a wide temperature environment (-20~+70°C), and its service life exceeds 20000H.

Chenghao Display is a leading LCD module manufacturer dedicated to providing high-quality products to global customers. We have an ISO9001 certified Lcd factory, an experienced technical team and professional customer service staff are responsible for customer orders. In addition, the company is willing to take responsibility for the delivery time and provide customers with accurate and detailed information about the delivery process.



1.47 inch IPS TFT Lcd Touch Screen Display Parameter (Specification)

Module NoCH147QV03A-CT
Number of dots172*320
Viewing DirectionAll Viewing Angle
Operating TempWide Temp(-20~+70℃)
Life Time>20000H
TFT InterfaceSPI
TP InterfaceI2C
Luminace400 cd/m2





1.47 inch IPS TFT Lcd Touch Screen Display Feature And Application

Chenghao Display CH147QV03A-CT is asmall displaydesigned and customized for installation on smart watches. It can provide customers with CE, RoHS, FCC and other certificates that comply with European and American regulations, and also provide one-year warranty service. The FPC, backlight brightness, interface and other items of thismini touch screencan be modified and designed according to customer requirements, and can be widely used in various wearable devices with mini lcd monitors, such as smart watches, smart bracelets, heart rate monitors, etc.



1.47 inch IPS TFT Lcd Touch Screen Display Details

Module Name:1.47 Inch lcd

Module No:CH147QV03A-CT

Manufacture:Chenghao Display

Resolutions: 172*320 dots

Display Mode: IPS/Transmissive/Normally Black

Viewing Direction: 80/80/80/80

Touch Panel Type: Capacitive Touch Panel

Touch Panel Interface: I2C

TFT Lcd Interface: SPI (Optional)

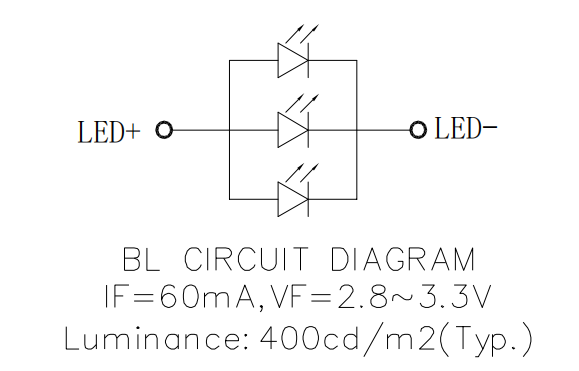

Backlight Brightness: 400 nits

Color: 65K

Contrast:800:1

Life Time>=20000H

Storage Temperating: -30~+80℃

Operating Temperating:-20~+70℃
