Hydraulic Cylinders: The Workhorses of Industrial Applications

Introduction

Hydraulic cylinders are integral components in a vast range of industrial applications. From construction equipment to manufacturing machinery, these powerful devices convert fluid power into mechanical force, enabling heavy lifting, precise movement, and efficient operation of various systems. In this blog, we will explore the basics of hydraulic cylinders, their types, and their critical role in industrial applications.

What is a Hydraulic Cylinder?

A hydraulic cylinder is a mechanical actuator that generates linear force and motion using pressurized hydraulic fluid. It consists of a cylindrical barrel, a piston, and a piston rod. When hydraulic fluid is pumped into the cylinder, it exerts pressure on the piston, causing it to move. This movement is then transferred to the piston rod, creating the linear force needed to perform various tasks.

How Hydraulic Cylinders Work

Hydraulic cylinders operate based on Pascal's principle, which states that pressure applied to a confined fluid is transmitted equally in all directions. Here's a step-by-step overview of how they work:

1. Pressurization: Hydraulic fluid, typically oil, is pumped into the cylinder through an inlet port. The pressure of the fluid increases as it fills the cylinder.

2. Piston Movement: The pressurized fluid pushes against the piston, causing it to move within the cylinder barrel. This movement is what generates the force.

3. Piston Rod Extension/Retraction: As the piston moves, it extends or retracts the piston rod, depending on the direction of fluid flow. This linear movement is used to perform work, such as lifting, pushing, pulling, or pressing.

4. Fluid Release: To reverse the movement, the hydraulic fluid is released from the cylinder through an outlet port. This reduces the pressure, allowing the piston and rod to return to their original positions.

Types of Hydraulic Cylinders

Hydraulic cylinders come in various types, each designed to meet specific needs and applications. Here are some common types:

1. Single-Acting Cylinders

  - Description: In single-acting cylinders, hydraulic fluid only acts on one side of the piston. The piston is pushed in one direction by the fluid, and a spring or external force returns it to its original position.

  - Use: These cylinders are commonly used in applications where the force is required in only one direction, such as in clamping, pressing, or lifting.

2. Double-Acting Cylinders

  - Description: Double-acting cylinders have two ports for hydraulic fluid, one on each side of the piston. This allows the piston to be moved in both directions by fluid pressure.

  - Use: These are widely used in applications requiring movement in both directions, such as in construction equipment (excavators, bulldozers), industrial machinery, and robotics.

3. Telescopic Cylinders

  - Description: Telescopic cylinders consist of multiple nested cylinders that extend sequentially, providing a long stroke from a compact initial size.

  - Use: These are ideal for applications with limited space but requiring a long reach, such as in dump trucks, cranes, and aerial work platforms.

4. Tie-Rod Cylinders

  - Description: These cylinders are constructed with rods that hold the end caps to the cylinder barrel, providing structural support and preventing leaks.

  - Use: Commonly used in industrial and manufacturing applications, where reliable sealing and durability are essential.

5. Welded Cylinders

  - Description: Welded cylinders have a robust design with end caps welded directly to the cylinder barrel, eliminating the need for tie rods.

  - Use: They are preferred in heavy-duty applications, such as construction, mining, and agriculture, where exposure to harsh environments and high loads is expected.

Applications of Hydraulic Cylinders

Hydraulic cylinders are found in a wide range of industries and applications, including:

1. Construction and Earthmoving: Hydraulic cylinders power the movement of excavators, loaders, bulldozers, and cranes. They are used to lift, tilt, rotate, and control the heavy machinery essential for construction projects.

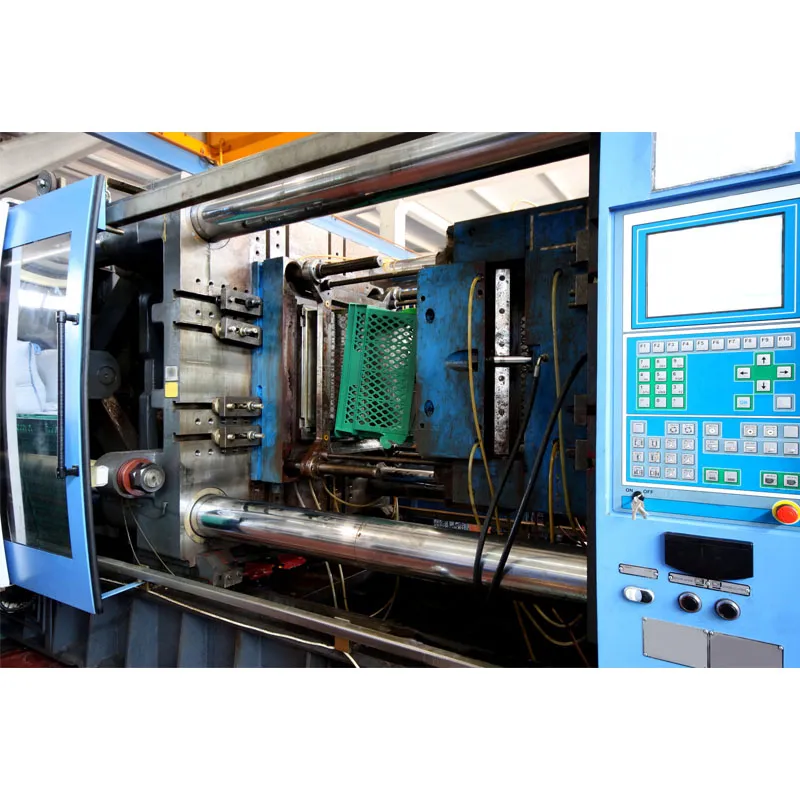

2. Manufacturing and Automation: In manufacturing plants, hydraulic cylinders are used in presses, clamping devices, injection molding machines, and assembly lines. They provide precise control and force for tasks such as cutting, bending, shaping, and assembling components.

3. Agriculture: Tractors, harvesters, and other agricultural machinery rely on hydraulic cylinders for various functions, such as lifting, steering, and controlling attachments like plows, loaders, and harvesters.

4. Aerospace and Defense: Hydraulic cylinders are used in aircraft landing gear, flight control systems, and military equipment, where reliability, precision, and high power-to-weight ratio are critical.

5. Automotive: In the automotive industry, hydraulic cylinders are used in braking systems, suspension systems, and power steering mechanisms, providing control and stability to vehicles.

Conclusion

Hydraulic cylinders are the workhorses of many industries, providing the force and precision needed to perform various tasks efficiently. By understanding the different types of hydraulic cylinders and their applications, businesses can choose the right equipment to enhance productivity and ensure safe and reliable operation. Whether it's lifting heavy loads, controlling machinery, or performing intricate movements, hydraulic cylinders continue to be a cornerstone of modern industrial and mechanical systems.
